CED-1781
Sold Out
These batteries are intended for use in electronics projects by people knowledgeable in the use and chemistry of lithium ion batteries. Do not use these batteries to replace batteries found in consumer electronics. The polarity may not be the same, the connectors may not match. In addition, such batteries often use proprietary circuits for charging/monitoring, and our batteries are not equipped with these protections. We will not warranty the use of these batteries in any consumer product, and we will not be liable in case of damage caused by these batteries. Improper use of lithium ion batteries can damage your electronics or cause a fire.
Need a big battery for your project? This lithium-ion battery contains a 2200mAh and a protection circuit that provides over-voltage, under-voltage, and over-current protection. Yet, it is slim and easy to fit into many project cases.
This cell can provide 2C of peak current (4400mA). Note that these batteries are not designed to sustain such high loads, we suggest keeping any constant current draw under about 0.5C (1 Amp)

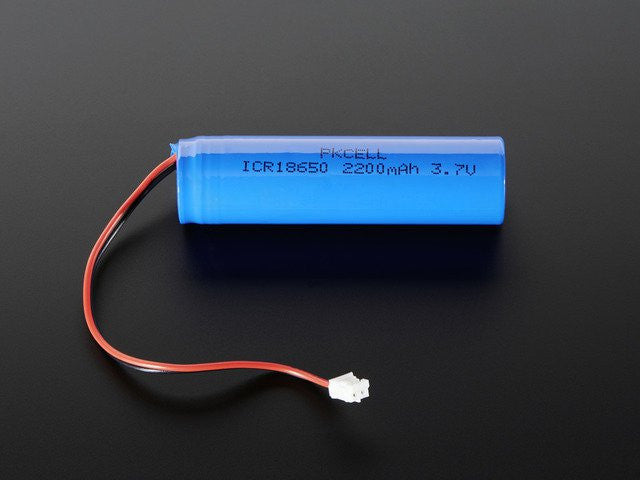

The batteries come pre-attached with a 2-pin JST-PH connector as shown and include the necessary protection circuitry. Because they have a high quality JST-or-compatible connector, the cable won't snag or get stuck in a matching JST jack, they click in and out smoothly. The cables are rated for 2A so if you use them keep that in mind.
The included protection circuitry keeps the battery voltage from going too high (over-charging) or low (over-use) which means that the battery will cut out when completely dead at 2.5V. However, even with this protection, it is very important that you only use a LiIon/LiPoly constant-voltage/constant-current charger to recharge them and at a rate of 0.5C (1 Amp) or less.
Like most lithium-ion packs, the batteries we sell do not have thermistors built-in. This is why we suggest charging at 1/2C or even less - 1A max in this case. Of course, you can charge at a lower rate - it'll just take a little longer to fill up.
Additional safety notes: Do not use a NiMH/NiCad/lead-acid charger! Also, do not abuse these batteries, do not short, bend, crush, or puncture. Never charge or use unattended. Always inspect batteries and surrounding circuitry constantly for any damage, loose wiring, or the possibility of short circuits. Polarity matches all Adafruit LiPoly/LiIon chargers and boards, other brands may have reverse polarity and can destroy your battery. As with all Lithium-ion polymer batteries and with any power source - they should be used by experts who are comfortable working with power supplies.
