Adafruit 0.56" 4-Digit 7-Segment Display w/I2C Backpack - Green

CED-880

What's better than a single LED? Lots of LEDs! A fun way to make a small display is to use an 8x8 matrix or a 4-digit 7-segment display. Matrices like these are 'multiplexed' - so to control all the seven-segment LEDs you need 14 pins. That's a lot of pins, and there are driver chips like the MAX7219 that can control a matrix for you but there's a lot of wiring to set up and they take up a ton of space. Here at Adafruit we feel your pain! After all, wouldn't it be awesome if you could control a matrix without tons of wiring? That's where these adorable LED matrix backpacks come in. We have them in two flavors - a mini 8x8 and a 4-digit 0.56" 7-segment. They work perfectly with the matrices we stock in the Adafruit shop and make adding a bright little display trivial.

The matrices use a driver chip that does all the heavy lifting for you: They have a built in clock so they multiplex the display. They use constant-current drivers for ultra-bright, consistent color (the images above are photographed at the dimmest setting to avoid overloading our camera!), 1/16 step display dimming, all via a simple I2C interface. The backpacks come with address-selection jumpers so you can connect up to four mini 8x8's or eight 7-segments (or a combination, such as four mini 8x8's and four 7-segments, etc) on a single I2C bus.

The product kit comes with:

  • A fully tested and assembled LED backpack

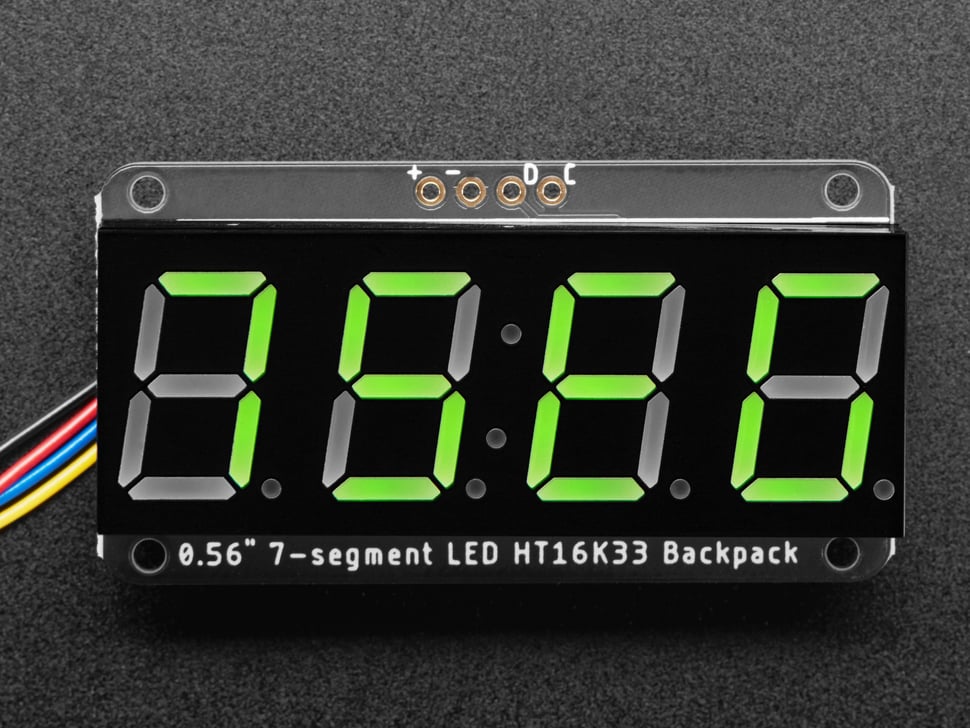

  • Ultra-bright 4-digit 0.56" tall green seven-segment display
  • 4-pin header

A bit of soldering is required to attach the matrix onto the backpack but its very easy to do and only takes about 5 minutes.

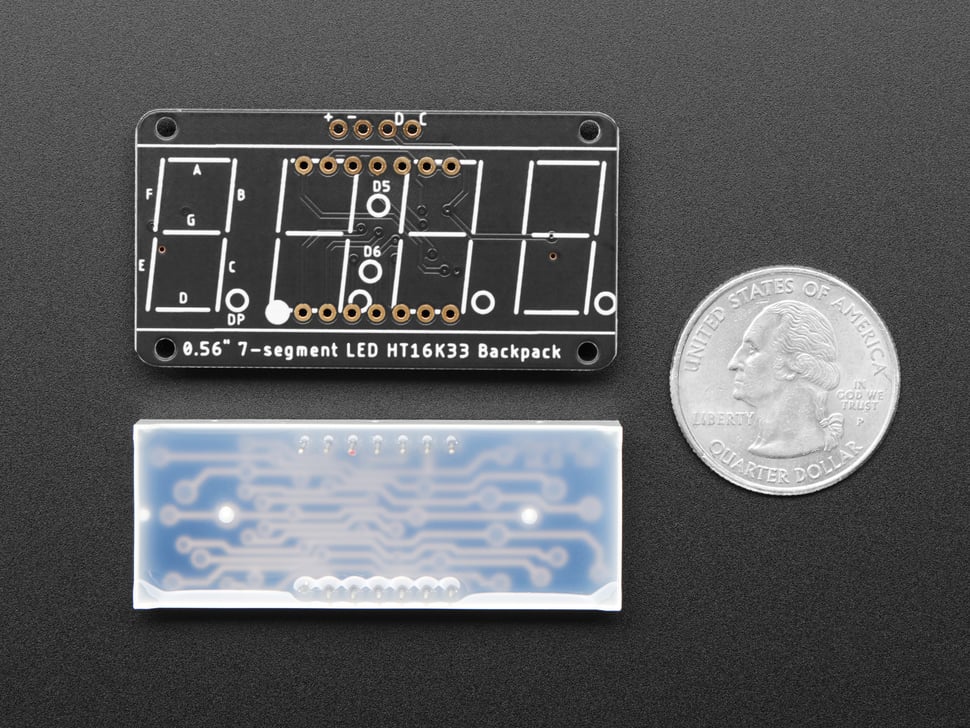

Of course, in classic Adafruit fashion, we also have a detailed tutorial showing you how to solder, wire and control the display. We even wrote a very nice library for the backpacks so you can get running in under half an hour, displaying images on the matrix or numbers on the 7-segment. If you've been eyeing matrix displays but hesitated because of the complexity, his is the solution you've been looking for!

Technical Details

This board/chip uses I2C 7-bit address between 0x70-0x77, selectable with jumpers

  • Backpack Dimensions: 50.0mm x 27.0mm x 7.0mm / 2.0" x 1.1" x 0.3"
  • Backpack Weight: 5.6g
  • 7-Segment Display Dimensions: 19mm x 50mm x 14mm / 0.75" x 2" x 0.56"
  • 7-Segment Display Weight: 8.4g

Datasheets, schematic, EagleCAD PCB files, and Fritzing available in the product tutorial

Revision History:

  • As of Jan 19 2022 - This PCB has been revised to include two vertical-mount STEMMA QT connectors so that the board can be plug-and-play with STEMMA QT cables and devices!
    RoHS 2 2011 65 EU CompliantRoHS 2 2015 863 EU Compliant

    Collections: Adafruit

    Type: LCD > 7 segment
