Adafruit FPC Stick - 20 Pin 0.5mm/1.0mm Pitch Adapter

SKU CED-1325
Original price $1.95 - Original price $1.95
Original price
$1.95
$1.95 - $1.95
Current price $1.95

Connect to 0.5mm, 1.0mm and even some 2.0mm pitch connectors that you may run across with an FPC stick. We designed this for use in house, to quickly connect to FPCs we need to test. But we also thought it might be useful for our customers. On either side is a 20 pin 0.5 or 1.0mm pitch connector with long pads and one very long 'mechanical' pad. Each pad is broken out to a 20-pin long 0.1" spaced header. It can accommodate most ZIF and snap connectors and will make prototyping much easier on you!

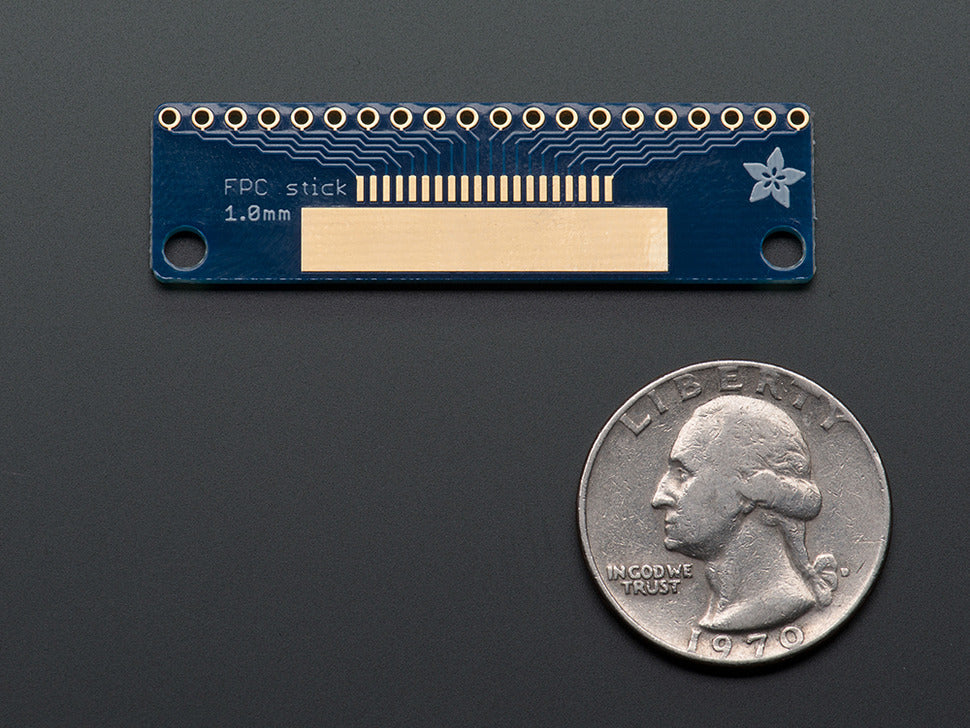

Each order comes with a single double-sided PCB stick (one side 0.5mm the other 1.0mm), no header or other connectors included.

Technical Details

    RoHS 2 2011 65 EU CompliantRoHS 2 2015 863 EU Compliant
