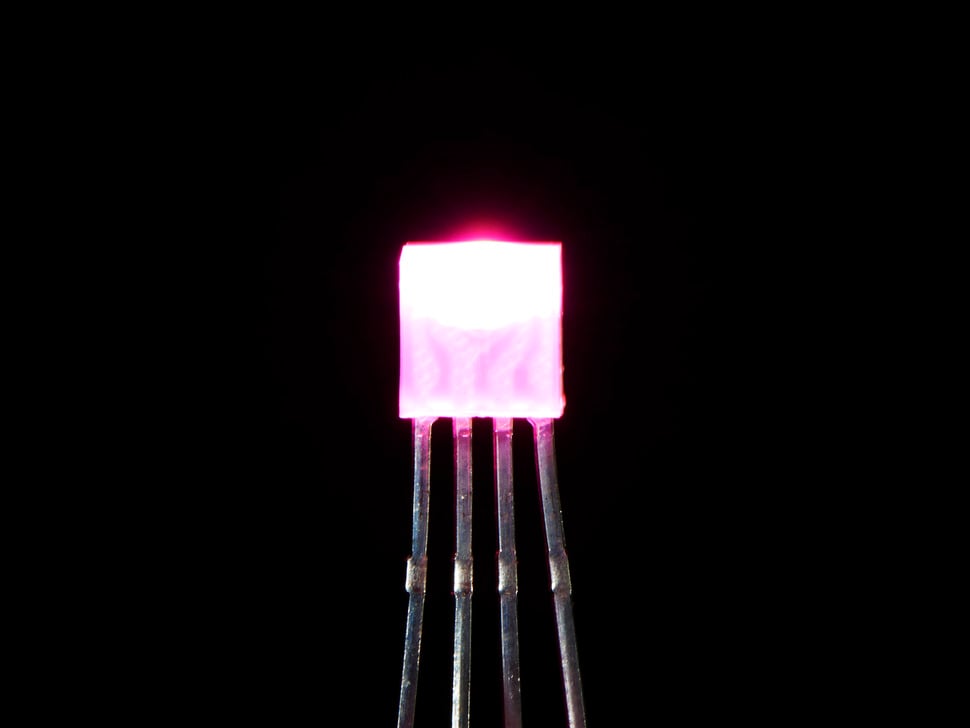

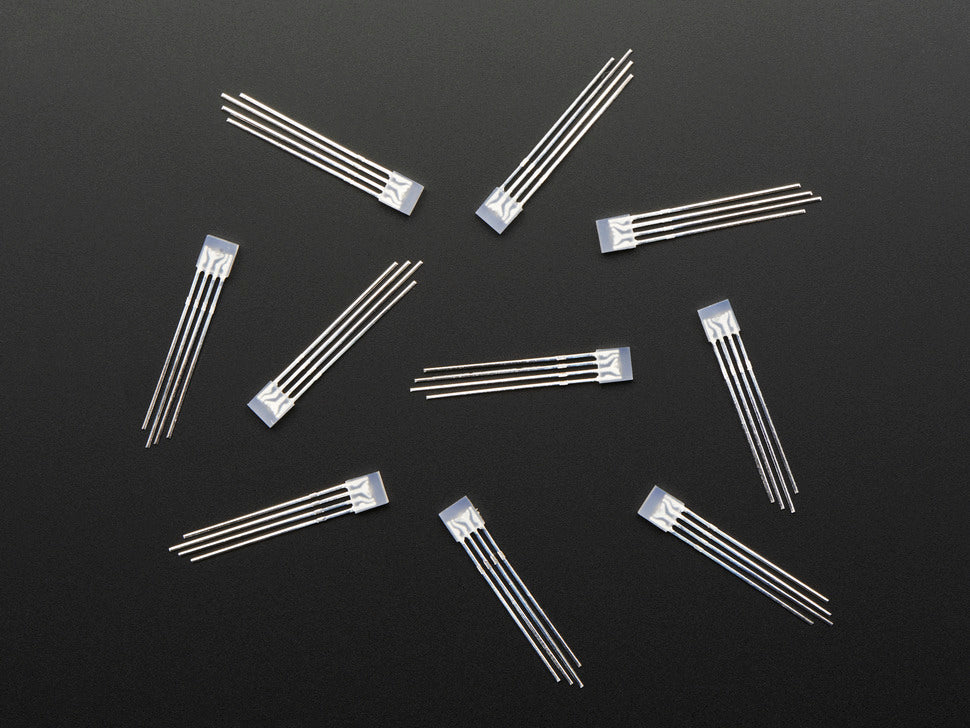

Make some beautiful colors with these diffused rectangular 2.5mm x 5mm RGB LEDs with separate red, green and blue LED chips inside! They make nice indicators, and they're fun to color-swirl! We like diffused RGB LEDs because they color mix inside instead of appearing as 3 distinct LEDs. Pack of 10 Diffused Rectangular 5mm RGB LEDs!

These are Common-Anode type which means you connect one pin to 5V or so and then tie the other three legs to ground through a resistor. We carry and use CA more than CC because multi-LED driver chips (such as the TLC5940/TLC5941) are often designed exclusively for CA and can't be used with Common-Cathode.

If you need some help using LEDs, please read our "Introduction to using LEDs" tutorial for any electronics project.

Technical Details

    RoHS 2 2011 65 EU CompliantRoHS 2 2015 863 EU Compliant
