DigiOne Signature

C1130

16 items left

Continue Shopping or View Cart

DigiOne Signature

Allo's regular DigiOne has no equal.  In their quest for digital perfection Allo asked how they could improve the design and give you the ultimate DigiOne.

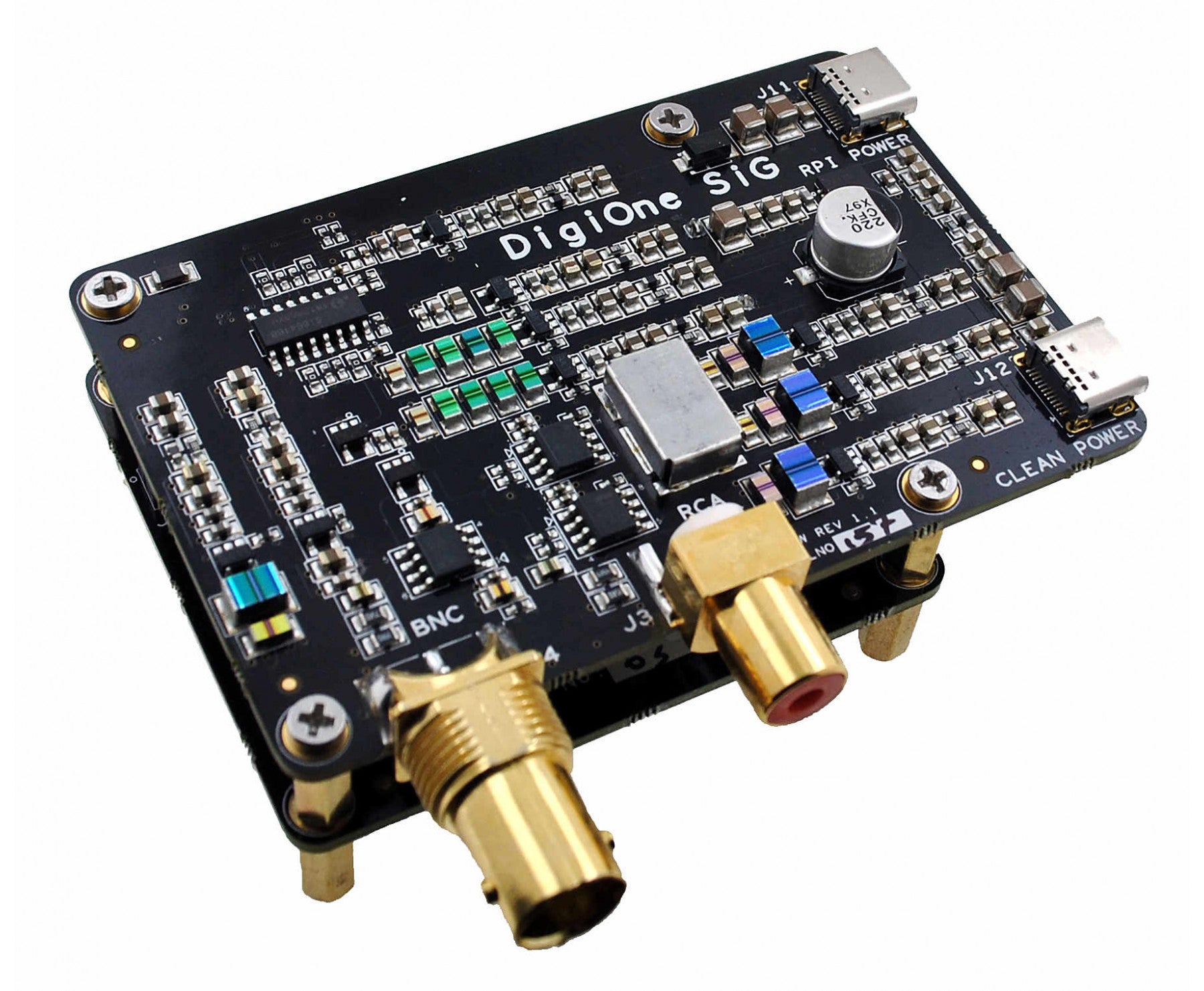

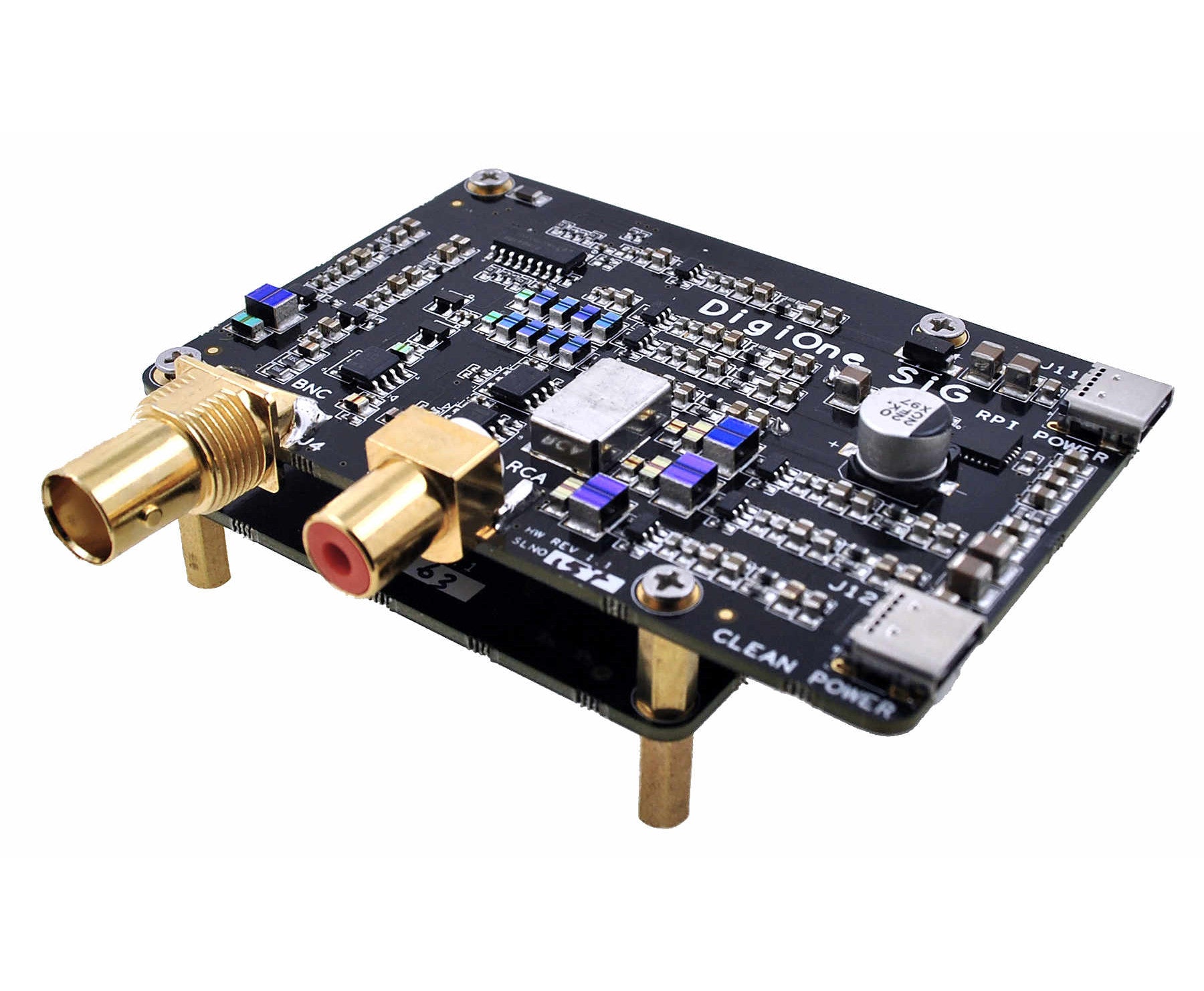

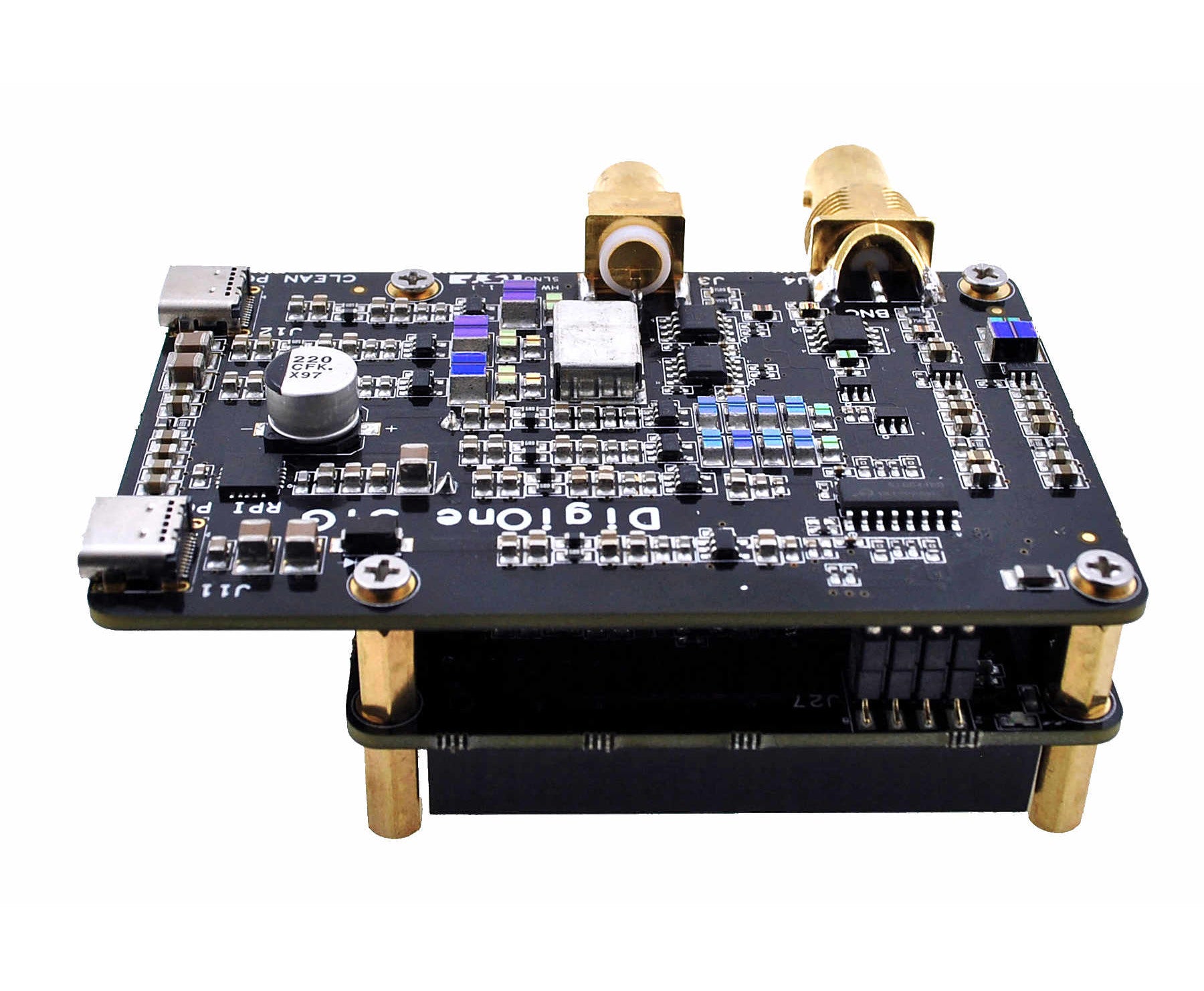

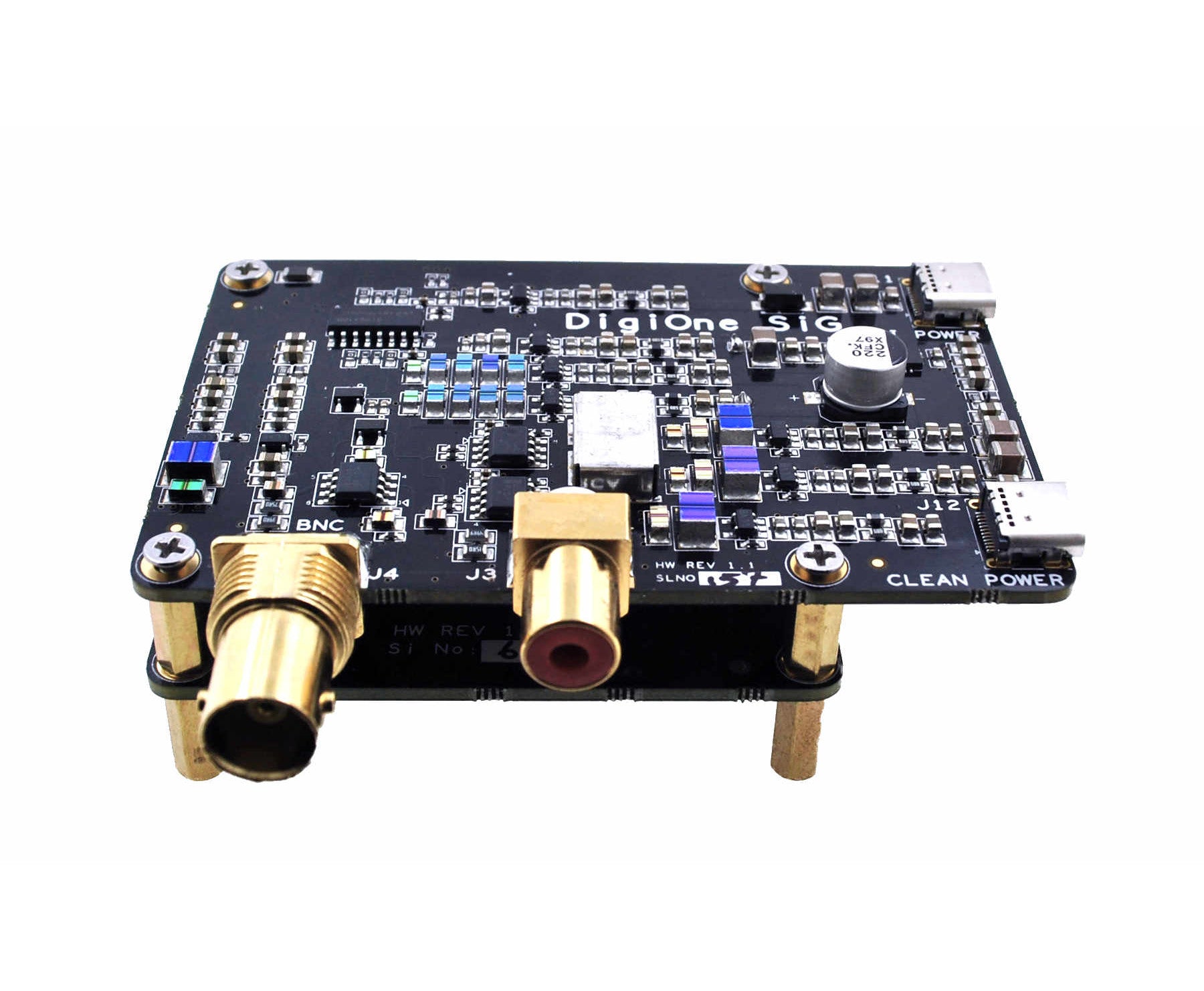

First, they decided to use more board space: the PCB area increased 220%. First board is the “dirty side” and top board has the “clean side”. With the extra space, Alloused the best decoupling capacitors (film) on everything that’s important (clocks, buffers, flip flops). Also, with this extra space Allo added a supercap on the “clean side” so most of the electrons come from this onboard “buffer” (there is so much power onboard that DigiOne Sig can run a few seconds without any power attached to the clean side).

Allo also decided to use 2 power supplies. The “dirty power” needs 5V /2-3A (RPI power). The “clean side” needs about 100mA and accepts from 5V to 6V. You can use anything on it, linear power supply or pure batteries power.

Thirdly, Allo changed the clocks to the latest from NDK (ultralow jitter SDA) that have lower phase noise than the previous generation.

* Please note that all acrylic cases we ship, have a protective film (which looks like brown paper). You will need to peel this film off, in order to reveal the case. This is to prevent scratching and fingerprints during shipping.

Features

  • It’s a "re-clocker". The unit has its own clocks so it does not rely on the jittery RPI clocks
  • It's galvanically isolated. The clean board is isolated (ground and signals) from the dirty side
  • It needs 2 PSUs, one for 5V/2A-3A (RPI) and a second power 5V to 6V 100mA. We do recommend the cleanest power supply possible (batteries, linear but even a good SMPS will work)
  • Old driver is compatible for both units (chose DigiOne on your favorite player)
  • Measured jitter has decreased further, less than 400fs (tested at buffer)

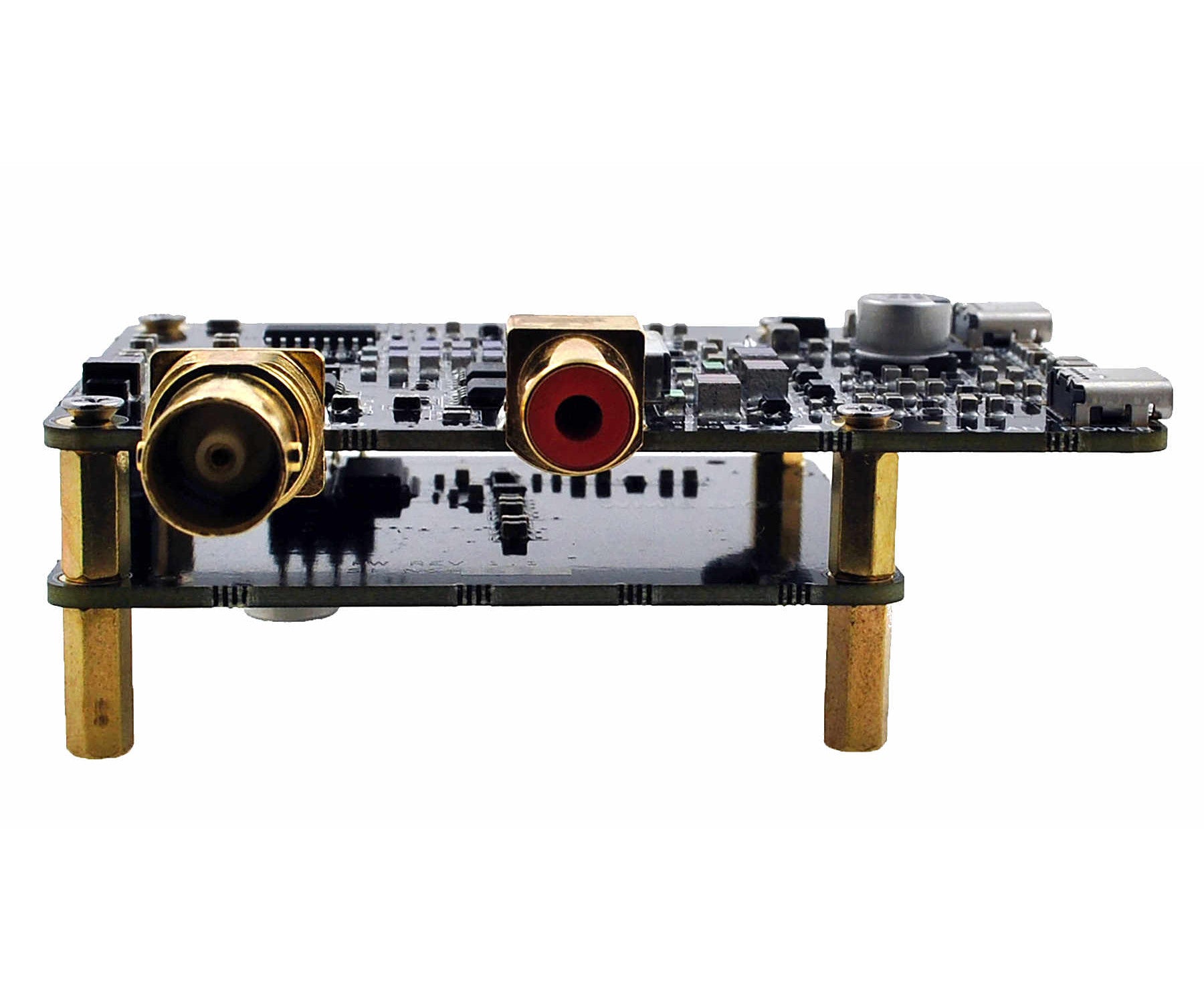

  • Output is coaxial/BNC and rise/fall time is 1ns and voltage level is exactly as per guidelines (550mV on coaxial) measured at end of transmitting cables
